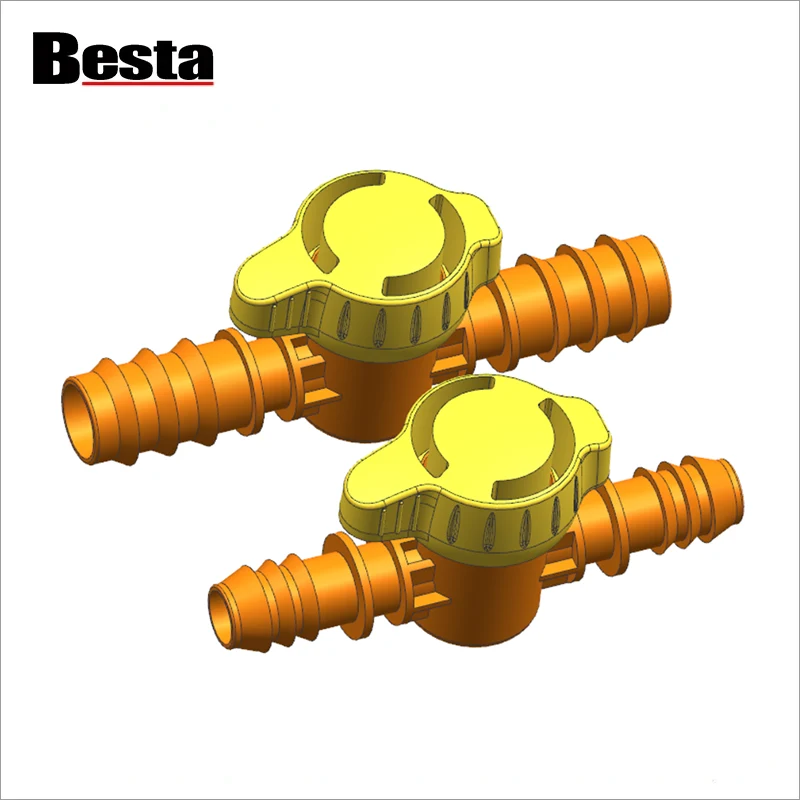

Irrigation mini valve has many different types, this type without sealing ring, it's the most popular type in the market at present, it's new design, price is cheaper, and very good quality, no any leakage, there has two different materials in the market, PP and POM, both are ok. About mini valve mold, we use standard mold base, cavity with 718H or H13 steel, mini valve body mold with 3plates design, hot or cold runner, normal 4cavity, the core use beryllium bronze is better, HRC38, better than water cooling, the mini valve handle mold also use standard mold base, normal with 8cavity, subgate, cold runner is ok. We can design one size just one body valve mold, use changable inserts to change different type, it's easy to change the cavity at the injection machine, by this way can help customer produce many different type in one mold, can save mold cost, also can use same handle for different size.As the professional manufacture, we would like to provide you high quality PP/POM Mini Valve Mold. And we will offer you the best after-sale service and timely delivery.
Apie PP / POM mini vožtuvo formą
Prekės aprašymas |
naujo dizaino mini vožtuvas mikro drėkinimui, be sandarinimo žiedo |
Keičiamas dydis |
naudokite changalbe įdėklą, kad pagamintumėte skirtingo dydžio toje pačioje vožtuvo korpuso formoje |
Prekės ženklo padėtis |
ant mini vožtuvo rankenos paviršiaus |
Formos pagrindas |
LKM, HASCO, DME arba pagal kliento pageidavimą standartinis formos pagrindas |
Ertmės numeris |
mini valve body with 4 or 8cavities, handle with 8 cavities |
Ertmė ir šerdies plienas |
718H, P20H, H13, 2316 ir kt. |
Projektavimo programinė įranga |
IR, Auto CAD ir kt. |
Plastikinė medžiaga |
PP arba POM |
Pelėsių vartai |
vožtuvo rankena su apatiniais užtvarais, vožtuvo korpusas su kaiščiu |
Formos bėgikas |
Šaltas bėgikas arba karštas bėgikas |
Vėsinimo sistema |
Aušinimas vandeniu arba berilio bronzos aušinimas |
Karščio gydymas |
Gesinimas, azotavimas |
Formos paviršius |
EDM, tekstūra, blizgus poliravimas |
Cavity hardness |
HRC28 ~ 60 |
Pelėsio gyvenimas |
> 300 000 šūvių |
Pristatymo laikas |
45-60 dienų |
Mold packing |
Standartinis eksporto medinis dėklas |
